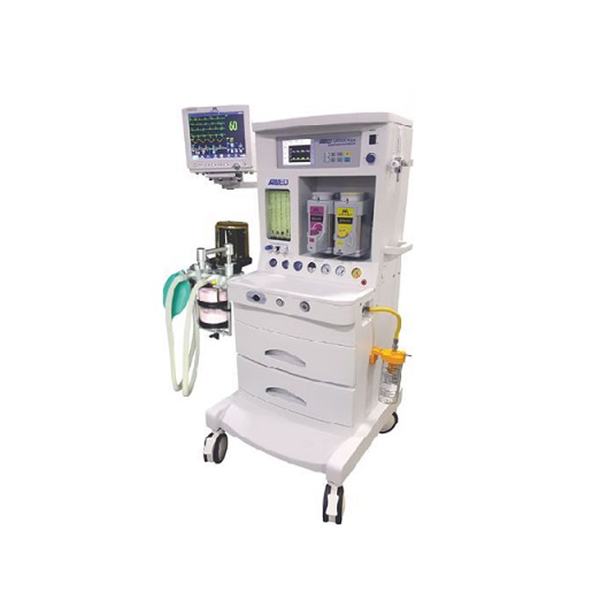

Allied Anaesthesia Workstations

Product Details:

Minimum Order Quantity: 01 Unit

Brand: Allied Medical

Storage Space: Two spacious drawers for keeping essential anaesthesia kit / accessories

Selectatec Brackets: Twin Selectatec Block

Breathing Circuits: Bains and Closed circuit provided as standard

Oxygen Low Flow: 0.1 to 1.0 lpm

Oxygen High Flow: 1 to 10 lpm

N Two O Low Flow: 0.1 to 1.0 lpm

N Two O High Flow: 1 to 12 lpm

Air Optional: 0.2 to 15 lpm

Height: 1465 mm

Width: 720 mm

Depth: 660 mm

Castors and Foot rest: Large roller bearing anti-static castors with front brakes & foot rest

Top Shelf Size: 625 mm x 320 mm

Work Surface Size: 540 mm x 250 mm

Drawer Size Internal: 490 mm x 320 mm

Writing Surface: Wide table top for writing

Monitor Shelf: Wide Monitor shelf at eye level

Non Return and Pressure Relief Valve: Minimizes risk of back flow of gases,blows off when pressure exceeds 125 Cm H2O

Regulators: Designed for higher efficiency,long service life and reliability for O2 and N2O

O Two Flush: Emergency oxygen flush switch at table level to give 35-70 Ltrs/min for emergencies

Nitro Lock: It enables N2O to cut off if Oxygen fails

Common Gas Outlet: Conveniently located CGO with ISO tapers for 22 & 15mm connections (CGO)
Specification

Features:

• Rust free framework
• Deep spacious drawer units
• Dual cascaded rotameters for O2 and N2O as standard
• Wide monitoring shelf at eye level
• Convenient common gas outlet
• Hook for the breathing circuit
• Open-Close circuit switch control
• Convenient mounting of circle absorber
• Twin Selectatec mountings for 2 Agent Specific Vaporisers
• Pin Indexed yokes Two for O2 and One for N2O
• Anaesthetic gas scavenging port
• Large, roller bearing, anti-static castors with front wheel brakes
• Electrical outlets for connecting monitors
• Central pipeline connections with gas specific NIST connectors

Patient Safety Features:

• Integrated Hypoxic Guard
• Emergency O2 flush
• Alarm to provide the audible indication of O2 supply pressure failure
• N2O shut off in the event of O2 failure
• Colour coded internal pipework
• Pressure relief valve

Optional Features:

• Third Gas (Air)
• Suction Unit
• Basal Flow
• Auxiliary Oxygen Therapy Unit
• Air / N2O Interlock
• 2nd Yoke for N2O

Standard Package:

• Three Gas machine O2 & N2O with dual flow rotameter & Air with single flowmeter
• Integrated Ventilator
• Circle System Absorber
• One agents specific Meditec England Pisces Vaporiser of customer’s choice(Halothane/ Isoflurane/ Sevoflurane)

Other Details:

• Cylinder Yokes: Color-coded gas specific (pin indexed) yokes with sliding stainless steel clamping bars for easy handling. Holding Two O2 and One N2O 5 Ltr. water capacity
• cylinders. Maximum number of Yokes – 4 (2O2 + 2N2O)
• O2 failure warning alarm: Self-activated electro-pneumatic audio-visual warning device to indicate the drop in O2 pressure below 2.5 Bar
• Hypoxic Guard: Mixing device to proportion the N2O in such a way that minimum of 25% O2 is always present in the breathing gas mixture
• Pipe Line Gas Inlets: Non-interchangeable screw-threaded (NIST) pipeline inlets. In case of drop-in piped gas pressure, the pin index cylinders take over automatically
• Pressure Gauges: Large diameter, color-coded gauges fitted at the convenient angle for better visibility and clarity. One for each of the pin indexed yokes and one each corresponding to a piped gas inlet
