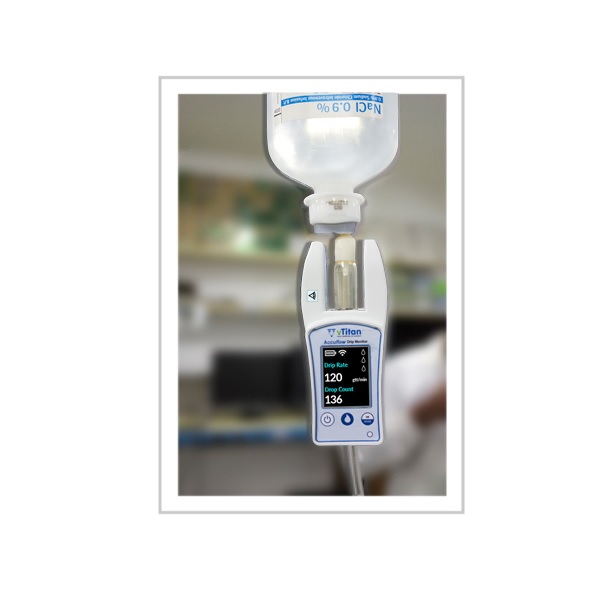

Accuflow Drip Monitor

The conventional gravity infusion method requires the nursing staff / caregivers to manually calculate the required flow rate and monitor the infusion at periodic intervals. Given the work load faced by nursing staff in a typical hospital scenario, periodic patient monitoring for IV is an additional burden and often times, patients or their care takers complain of IV not being infused and patient discomfort. Having an IV monitoring makes nurses job easy and efficient and eliminates scope for any human errors or late intervention in case of any alarms.

Accuflow Drip Monitor is designed to help you in IV monitoring

Accuflow Drip Monitor (ADM) device is used to monitor the gravity infusion and to provide alarms during the critical conditions.

Product Key Features:

• Monitor IV closely
• Precise Flow Measurement
• Critical Alrm display
• Reliable Drop Sensing
• Highly Affordable
• Zero Learning Curve
• Improved Patient safety
• Reduce Nurse Workload
• Remote Monitoring Station with alarm dashboards

Specification

Each Accuflow Drip Monitor Set contains:
Accuflow Drip Monitor device – 6 nos
LIthium-ion battery – 8 nos
Lithium-ion battery charging adaptor – 6 nos
Tablet 10.1 inch with vTitan Accuflow Drip Monitor App – 1 no
Wi-Fi Router – 2 nos
Tablet stand kiosk with lock access – 1 no
Power socket – 1 no

Accuflow Drip Monitor Device Specificiations
Dimensions: 115 mm x 50 mm x 42 mm (l x b x h)
Weight: 130 g
Display: 1.77″ color LCD
Compatible IV set: 20, 60 drops/mL
Display Parameters: Flow rate, Drip rate, Volume infused, Drop count
Alarms: Audio and Visual alarms – Infusion stopped, IV bag empty, Flow rate exceeded, Device displaced
IP protection: IP 22
Battery: Li-ion, operating time-24hrs
Communication: Wi-Fi

Warranty: 1 year from the date of shipment
