Product Information

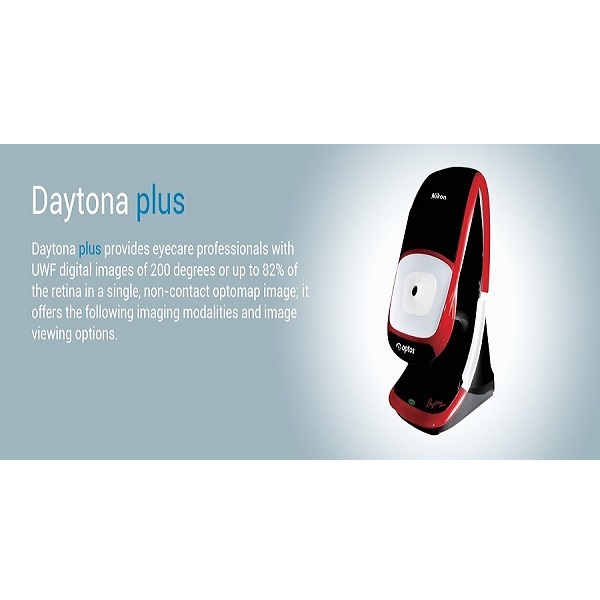

Daytona Plus Provides Eyecare Professionals With UWF Digital Images Of 200 Degrees Or Up To 82% Of The Retina In A Single, Non-contact Optomap Image. In Addition, The Daytona Plusdevice Comes With The OptosAdvance™ Browser-based Image Review Software, Which Allows For Simple Documentation, Monitoring, And Referral Processing To Assist In Patient Management And Improved Patient Flow.

Product Description

Why Daytona plus?

Daytona plus provides eyecare professionals with UWF digital images of 200 degrees or up to 82% of the retina in a single, non-contact optomap image. In addition, the Daytona plus device comes with the OptosAdvance™ browser-based image review software, which allows for simple documentation, monitoring, and referral processing to assist in patient management and improved patient flow.

Daytona plus imaging modalities and image viewing options:

Image Modalities

– Color
– Red-free
– Choroidal
– Autofluorescence

Image Views

– Standard: 200⁰ Single Capture
– Auto-montage: Up to 220⁰
– Central Pole: Detailed view of the macula
– Stereo: Image pairing for optic disc and retinal evaluation

Technical Specifications

Image Modalities:

optomap color and optomap plus (red and green laser):
Color composite view
Green laser view
Red laser view

optomap af (green laser):


optomap color: 20 μm
optomap plus, af : 14 μm


Red laser: 635 nm
Green laser: 532 nm

Exposure Time

Less than 0.4 seconds


Width: 440 mm/18 in
Depth: 500 mm/20 in
Height: 795 mm/32 in


28 kg/62 lbs

Table Space Requirements

Width: 700 mm/28 in
Depth: 550 mm/22 in


Black body with red trim
White body with red trim
White body with silver trim

Laser Class

Laser safety class-1
following EN60825

System Voltage

US: 100-120V at 50/60Hz 3a

Power Consumption

Max. 300VA




Red Free
