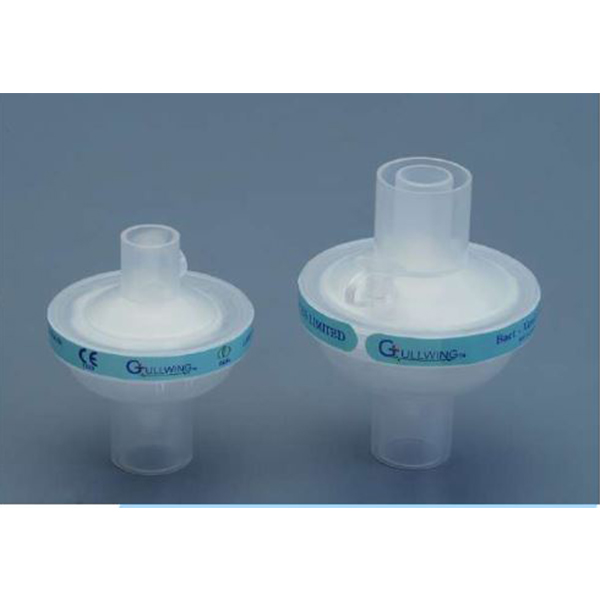

Bacterial Viral Ventilation Filters with HME Paediatric
MPIN: MP43203
Sign in to view price Ask for Quote
Electrostatic bacterial and viral filters with heat and moisture element to effectively warm and moisten the air while alsoprotecting the patient and healthcare workers from airborne microbes.
Features:
- Individually packed and ready to use
- Long lasting HME – beyond 24 hours
- Ideal humidification performance – avoids excessivebreathing gas humidification
- Designed for breathing circuits and devices
- Lightweight – Low tractive force on connection
- Biocompatible material
- Transparent casing – allows easy inspection of blockages
- Low dead space – minimizes threat of rebreathing
- High quality filtration media with proven efficiency
- Low flow resistance
- ISO connectors
Specification
| Technical parameters | Adult (Code: 2120) | Paediatric (Code: 2220) |
|---|---|---|
| Filtration efficiency (Bacterial and Viral) | >99.999% | >99.999% |
| Mode of filtration | electrostatic | electrostatic |
| Humidity output | 34 mg/l @VT-500ml | 34 mg/l @VT-250ml |
| Tidal volume | 250-1000 ml | 75-250 ml |
| Flow resistance | <0.3kpa @60 LPM | <0.2kpa @20 LPM |
| Dead space | <45 ml | <20 ml |
| Connectors | 22M/15F, 15M/22F | 15F/22M, 15M |
| Weight | <30g | <20g |
| Luer lock port for CO2 sampling | Yes | Yes |
