3nethra

flora
Digital Mydriatic Fundus Camera

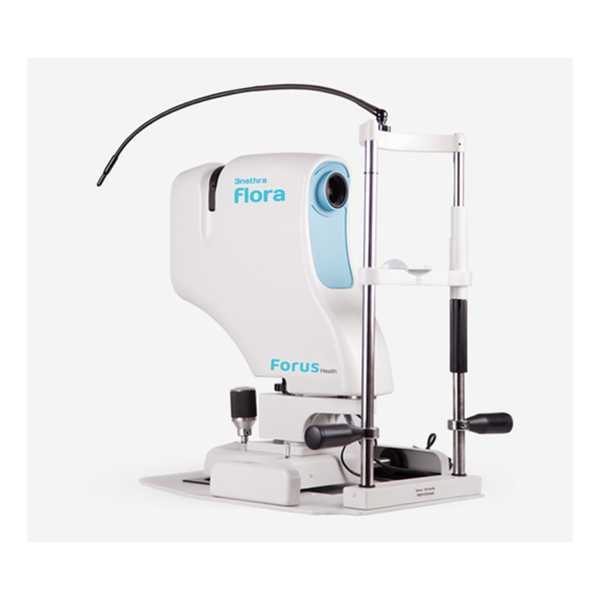

3nethra flora is a digital mydriatic fundus camera designed to capture colour, red free, and Fluorescein Angiography (FA) retinal images of the human eye. The camera provides high-contrast, undistorted, and evenly illuminated images of the peripheral retina for accurate diagnosis. The simplified design of the control panel allows the operator to switch easily between procedures while capturing images. The system improves the intensity control developed for optimal image capture.

Advantages

  • Single scan capture delivers comprehensive detail
  • Superior image quality
  • Sharp and clear imaging
  • Enhanced practice performance – Simple design, user friendly, full integration with clinical workflow
  • Ease of use
  • Rapid deployability

Key Features

  • Wide range of diagnostic imaging options — color, red-free, and FA images
  • Efficient image acquisition
  • Rapid and efficient workflow
  • Easy alignment and focus
  • Auto focus for quick imaging
  • Advanced intensity control for optimal image capture
  • Sleek and compact design
  • Enables disease monitoring
  • Greater diagnostic insights
  • High details and contrast in the same device

Technical Specifications

Image Sensor: CMOS 3 megapixels
Image Resolution: 2048 X 1536 pixels
FOV: 45 degrees
Working Distance: 38 mm
Type of Photography: Color, Red-free, and FFA photography
Auxiliary Functions: Manual/Auto
Fixation Target: External fixation
Interface: USB 2.0
Weight: 11kg (3.3kg tricam + 7.7kg stand)
Power: Uninterrupted AC power supply for 5 V DC adapter
Power Supply: Input: AC 100-240 V, 50/60 Hz (for DC power adapter 5 V/4 A)
Minimum System Requirements: 3nethra software will work on Intel i3 Processor Desktop/Laptop with Windows 7 and above OS (Windows 8 and Windows 10, both 32-bit and 64-bit Pro versions) with minimum RAM of 4 GB, a processor speed of 2.2 GHz, and 500 GB hard disk.
