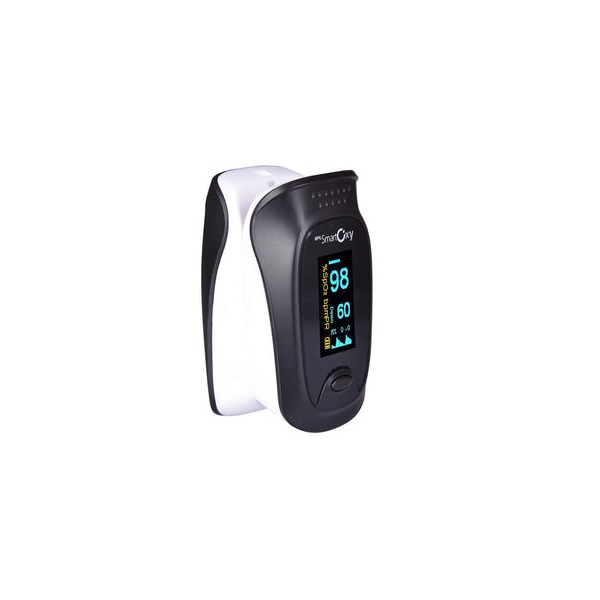

BPL Smart Oxy Pulse Oximeter

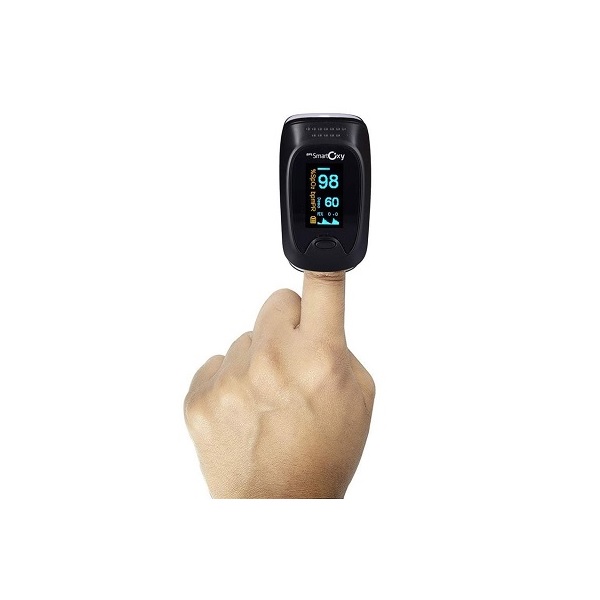

– BPL Smart Oxy is a portable finger tip oxygen monitor which measures the blood oxygen levels, pulse rate & the perfusion index graph
– It has a colour OLED display which has large fonts & brightness control
– The perfusion index display represents continuous peripheral perfusion
– The device has 4 directions & 6 display modes through which the monitored data can be displayed

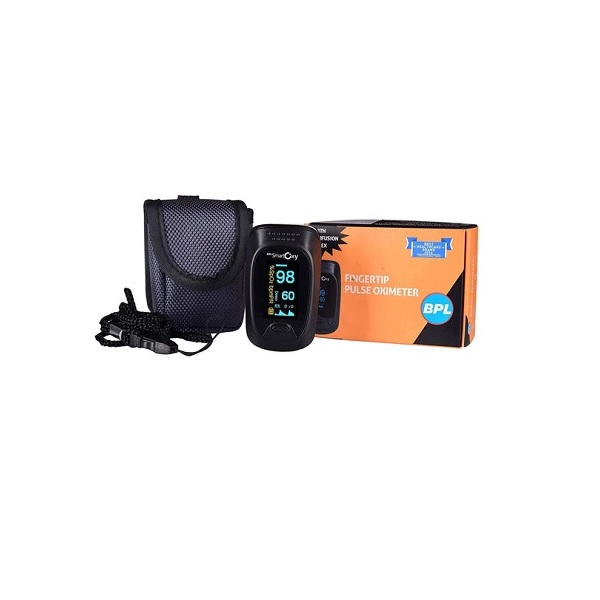

– It comes with a compact easy carry pouch
Technical Specifications:
– Working Temperature: 5°C to 40°C (41°F to 104°F)
– Relative Humidity: 15% to 80%, Non-condensing
– Atmospheric Pressure: 70 kPa to 106 kPa
– Rated Voltage: DC 3.0 V
– Oxygen saturation: Upper limit: 100; Lower limit: 94
– Pulse rate: Upper limit: 130; Lower limit: 50
– Alert condition: When the alert switch is on and the actual measured value goes beyond the preset alert parameter range, the Oximeter gives an alert sound
– Display range: Oxygen saturation: 35% to 100%; Pulse rate 25 bpm to 250 bpm
– Resolution: Oxygen saturation: 1%; Pulse rate 1 bpm
– Measurement precision: Oxygen saturation ±2% (70% to 100%), No requirement (≤ 69%); Pulse rate ±2 bpm
– Alert range Oxygen saturation: Upper limit: 50% to 100%; Lower limit: 50% to 100%
– Alert range Pulse rate: Upper limit: 25 bpm to 250 bpm; Lower limit: 25 bpm to 250 bpm
– Alert error: Oxygen saturation ± 1% of the preset value; Pulse rate The greater of ±10% of the preset value and ±5 bp
